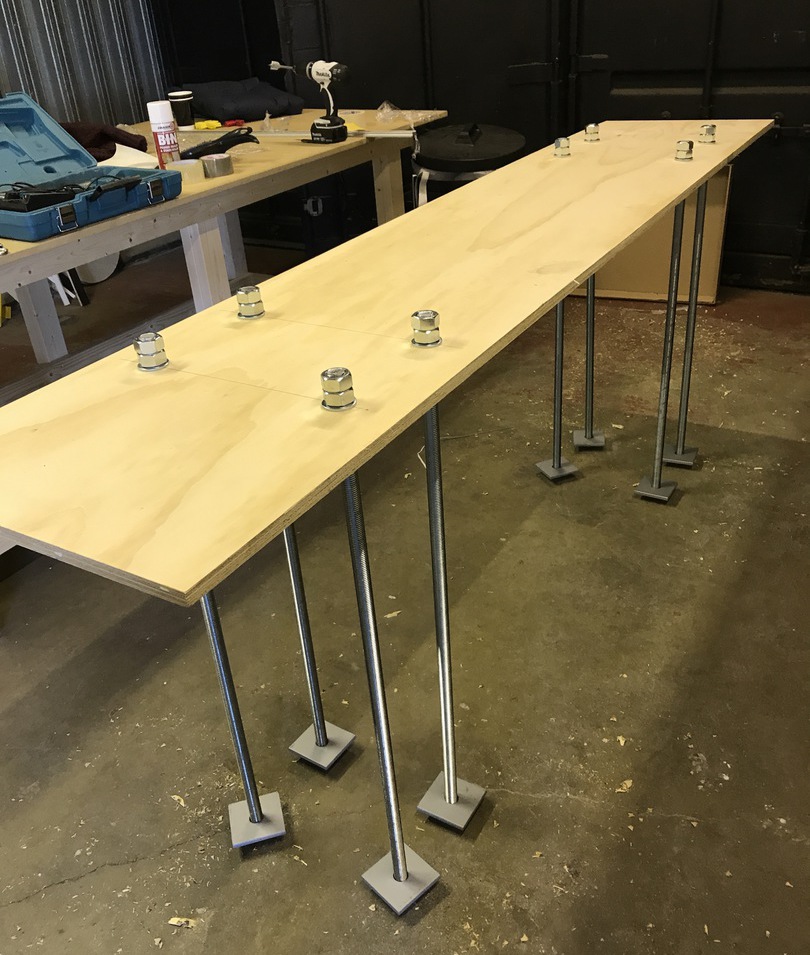

Pole sign ground cage, manufactured from 25mm high tensile threaded steel rod, assembled and ready to go to site.

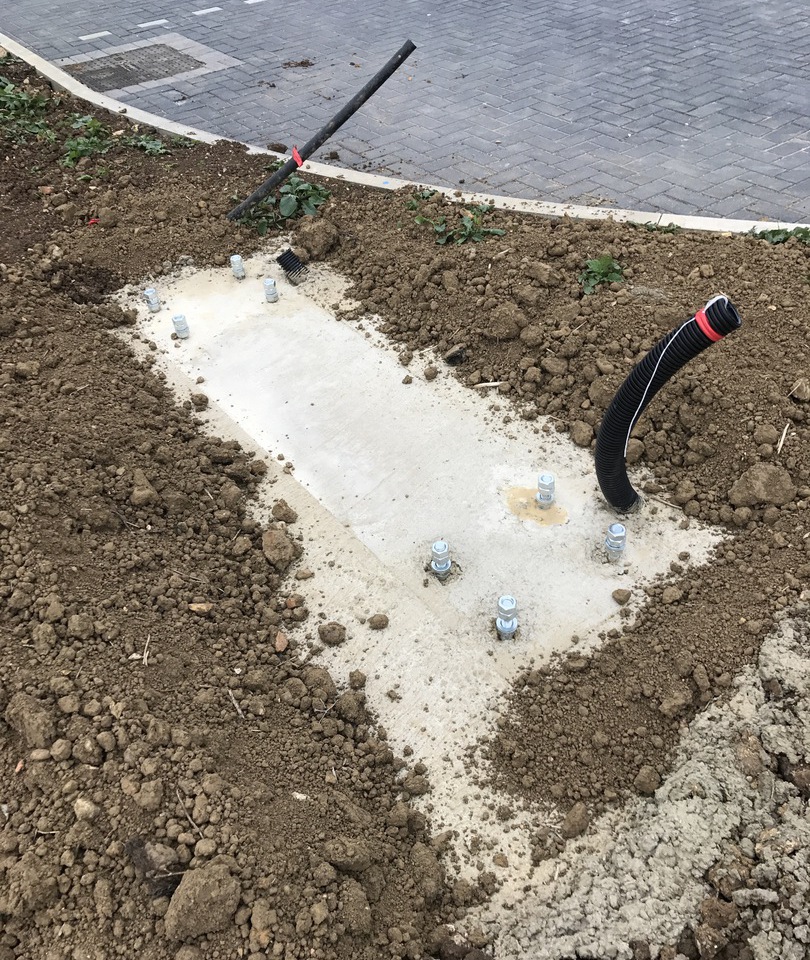

After a lot of digging...ground cage finally set in 6 cubic metres of concrete with power supply laid ready for installation.

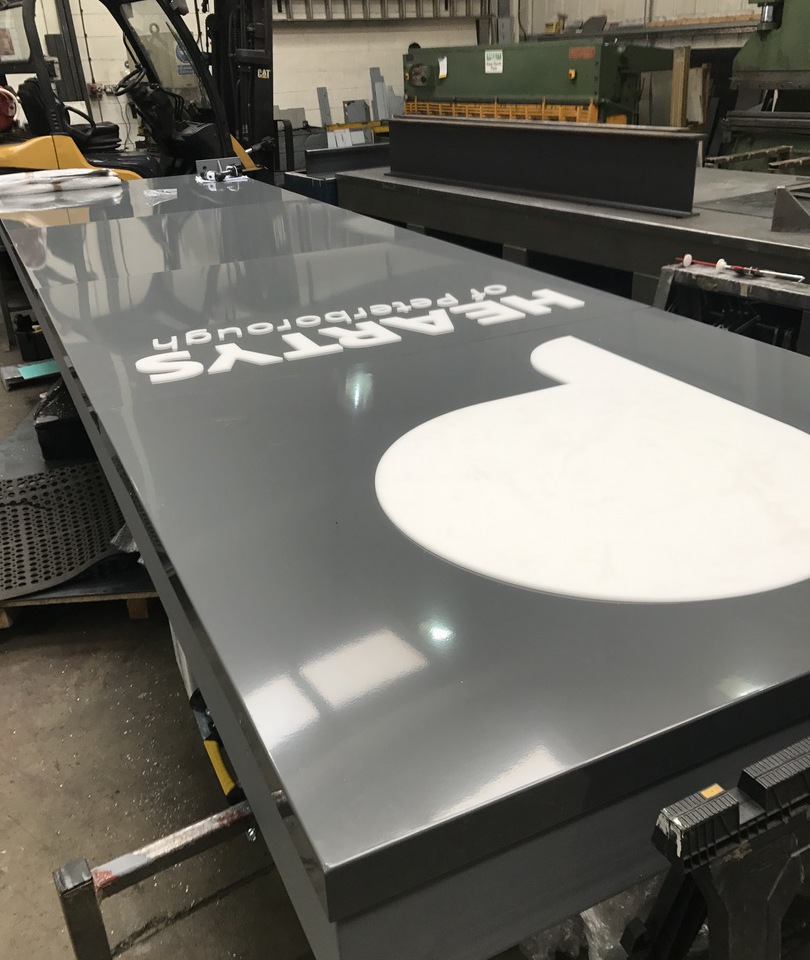

Fully assembling 3mm aluminium cladding panels and illumination to the totem structure in the workshops prior to fitting.

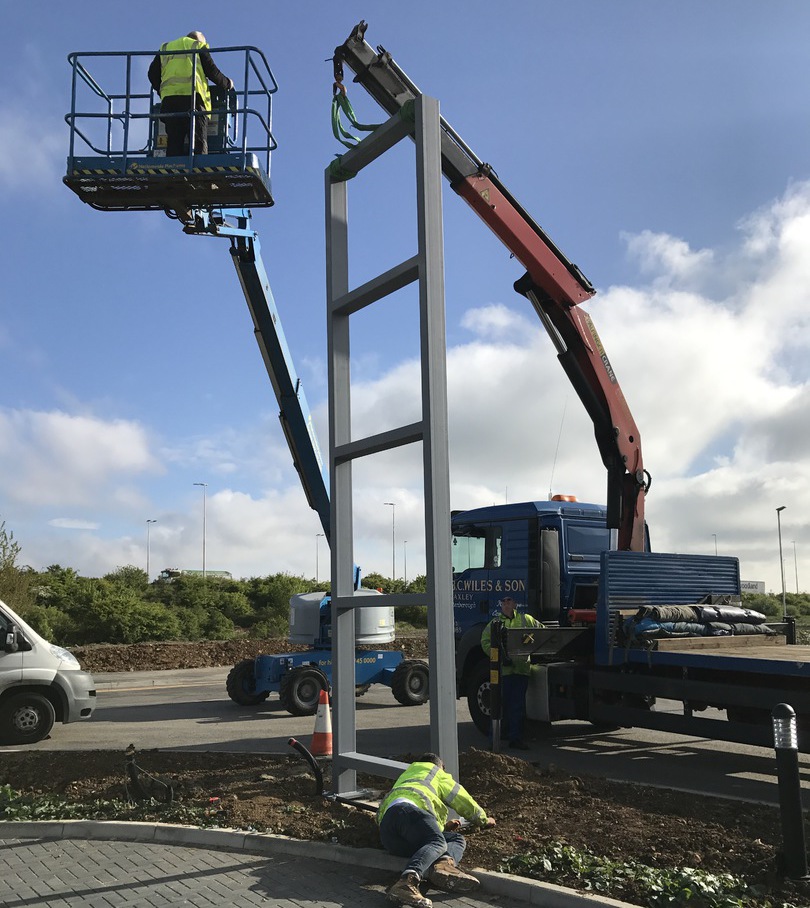

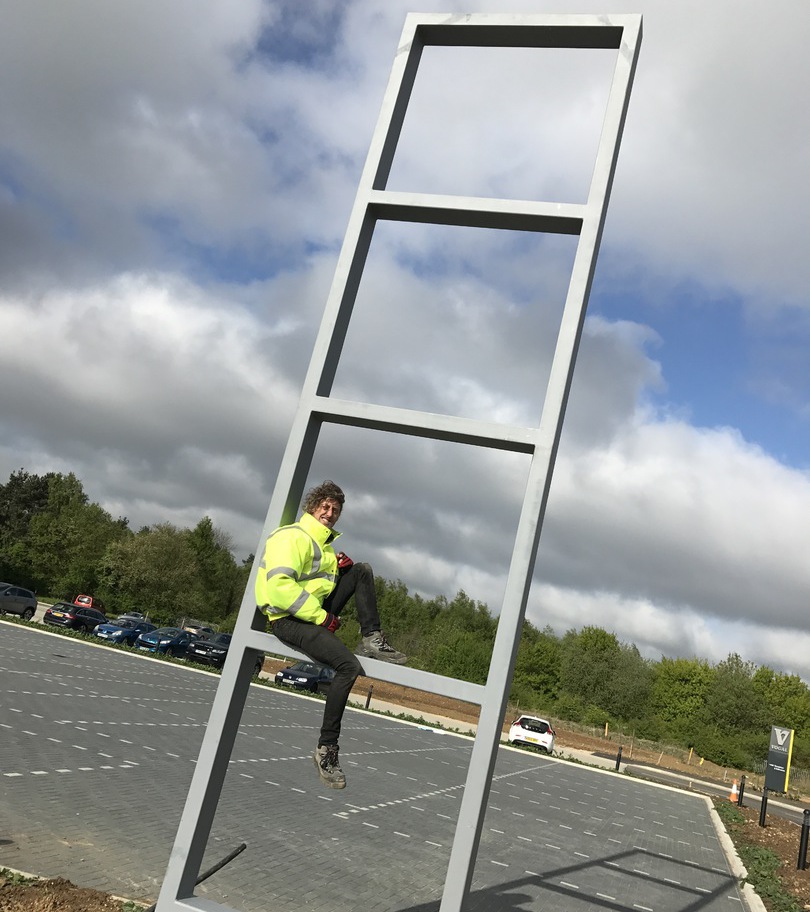

Another early morning nstallation. Fitting of the totem sign frame onto the finished base.





Always happy when everything lines up and cladding the sign can begin.

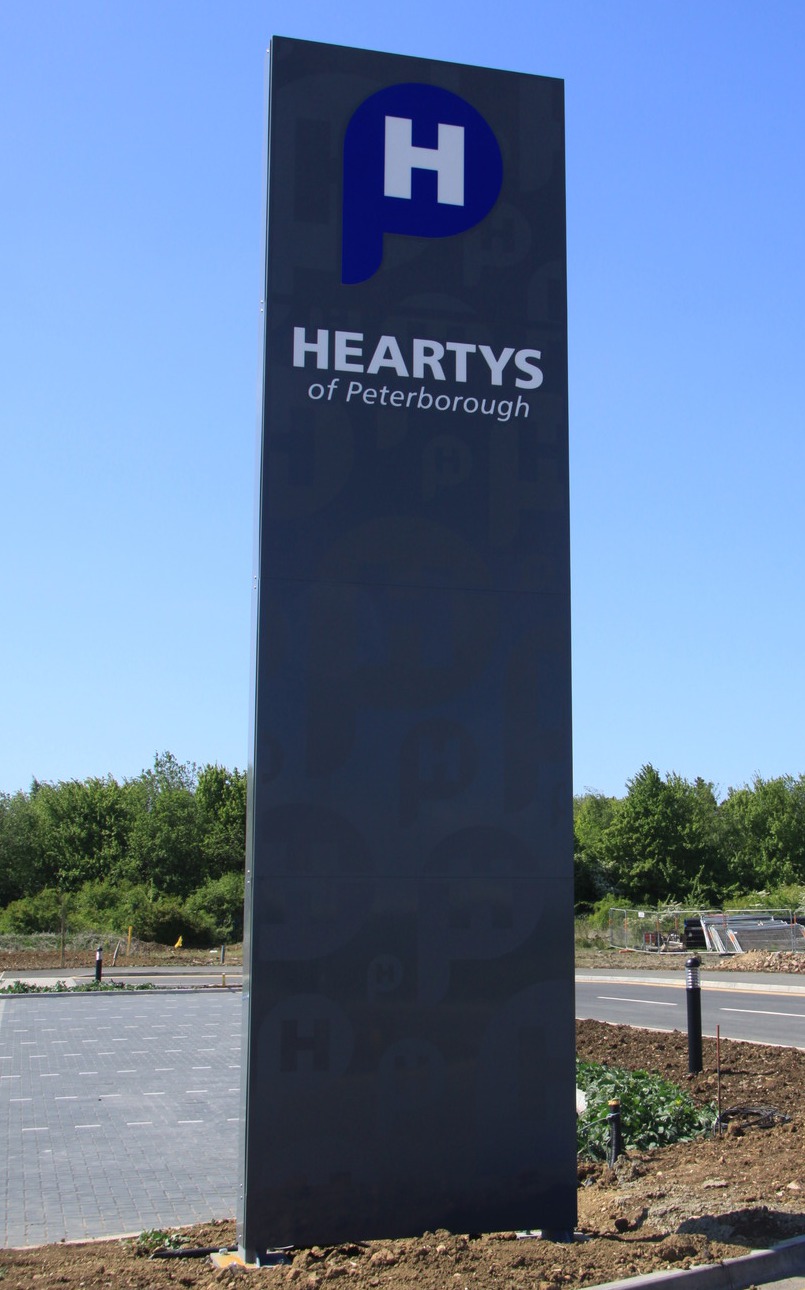

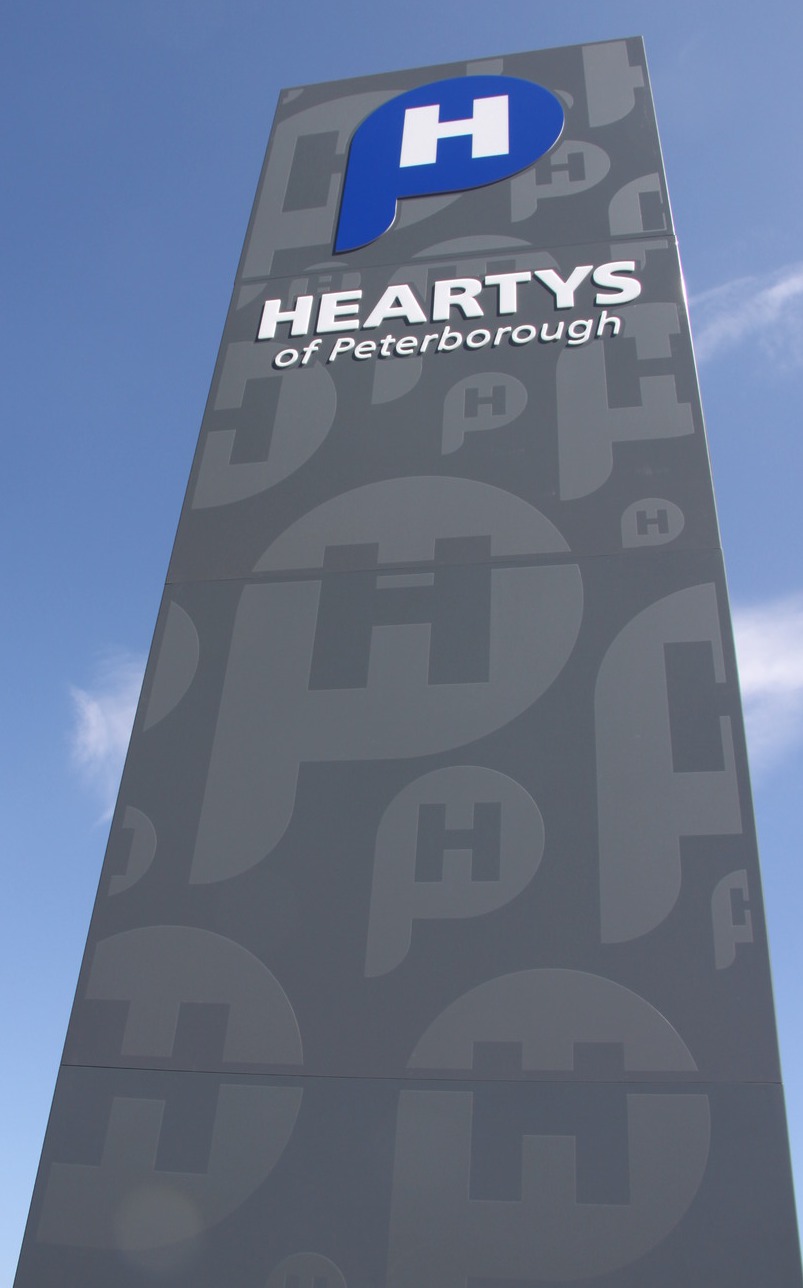

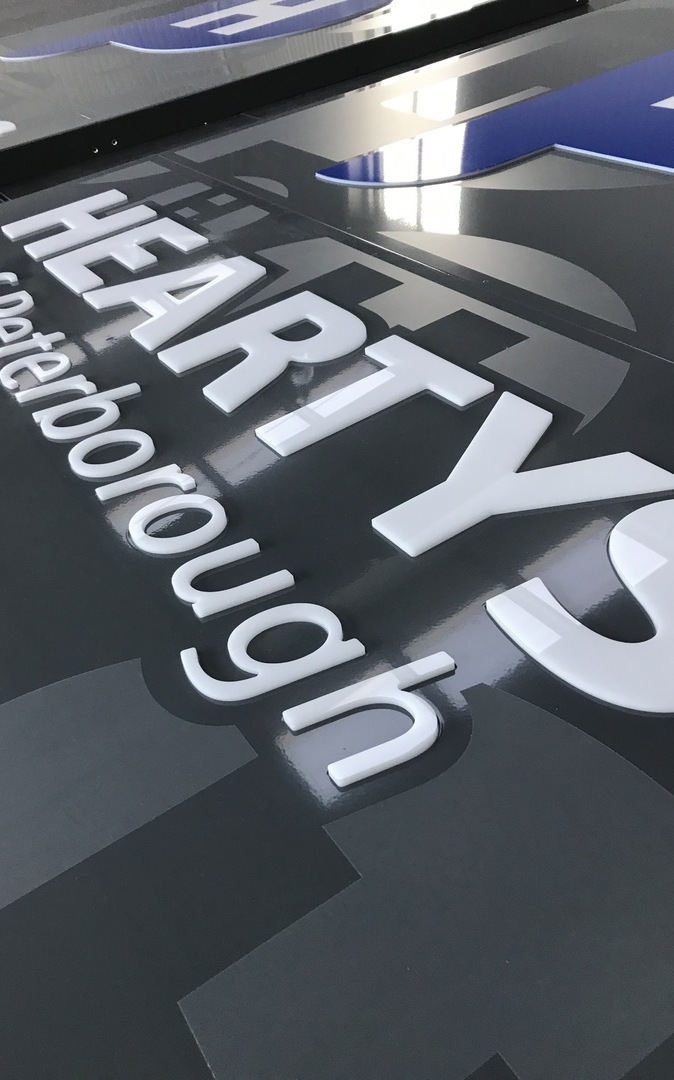

Totem sign fully dressed with fret cut 3mm aluminium panels inlaid with opal acrylic type and logo to allow for illumination by means of LED's. The panels were powdercoated in coroprate grey and faced with an etched applied vinyl detail to carry on the logo branding in a subtle but striking way.

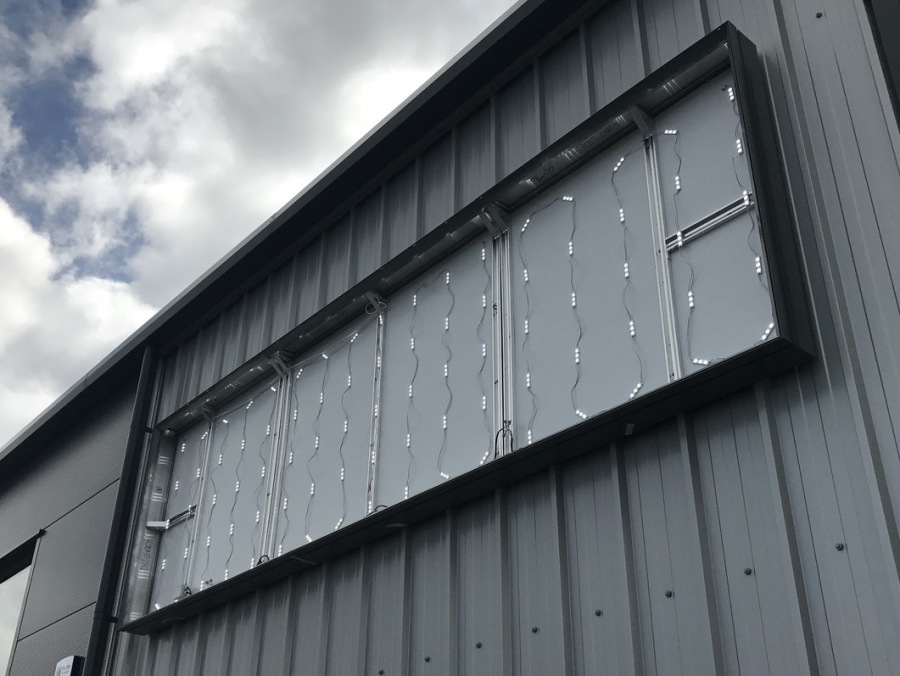

Powdercoated aluminium sign cases in position illuminated throughout with LED modules, prior to installation of skins.





Fully tensioned ultralon 4 digitally printed skins installed, with blockout to rear of grey areas to inhibit light penetration at night.

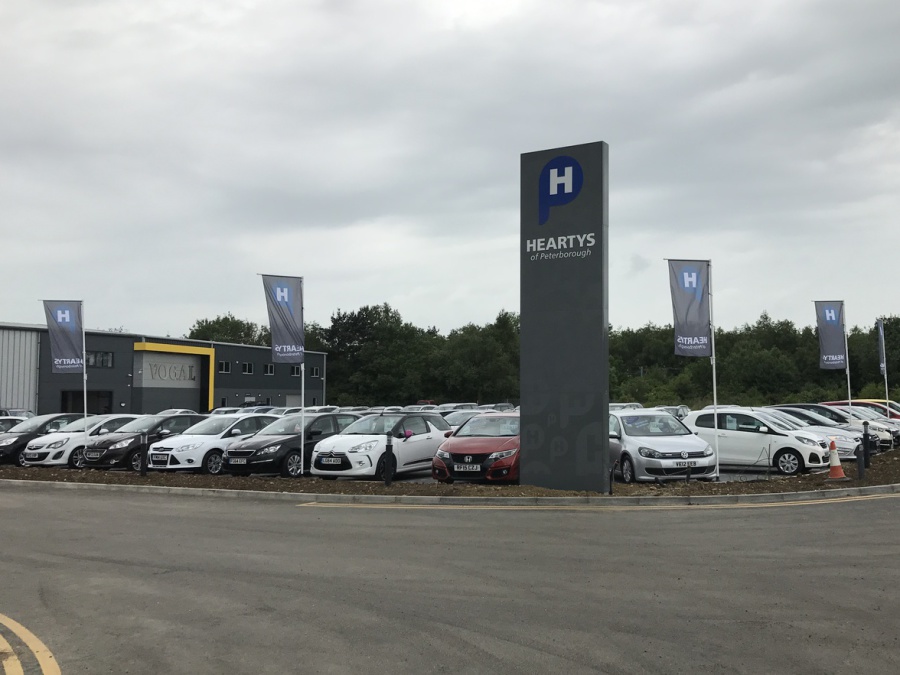

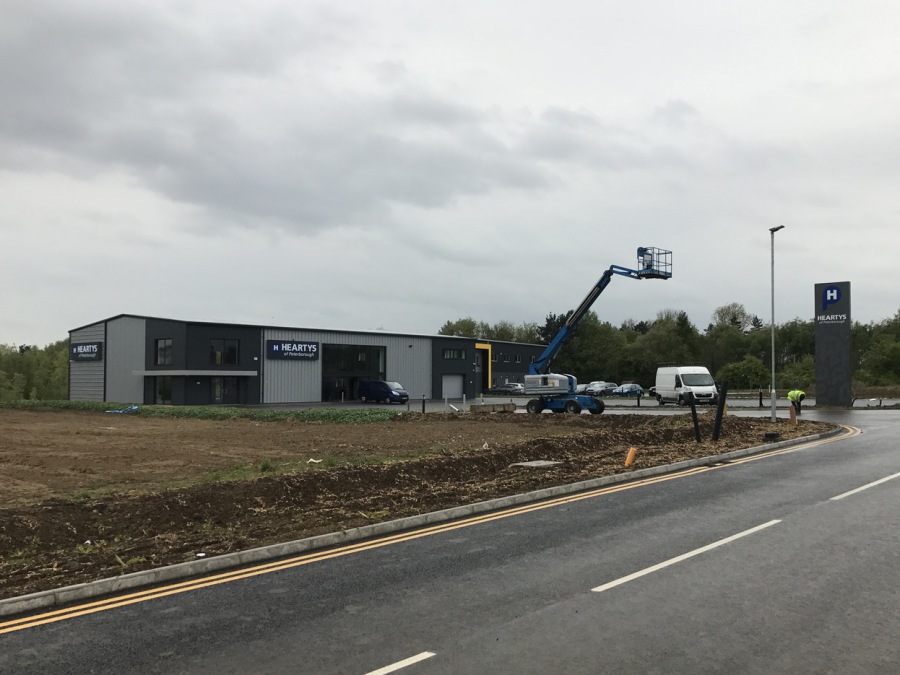

Site overview, all installed despite the rain, wind and hail storm.

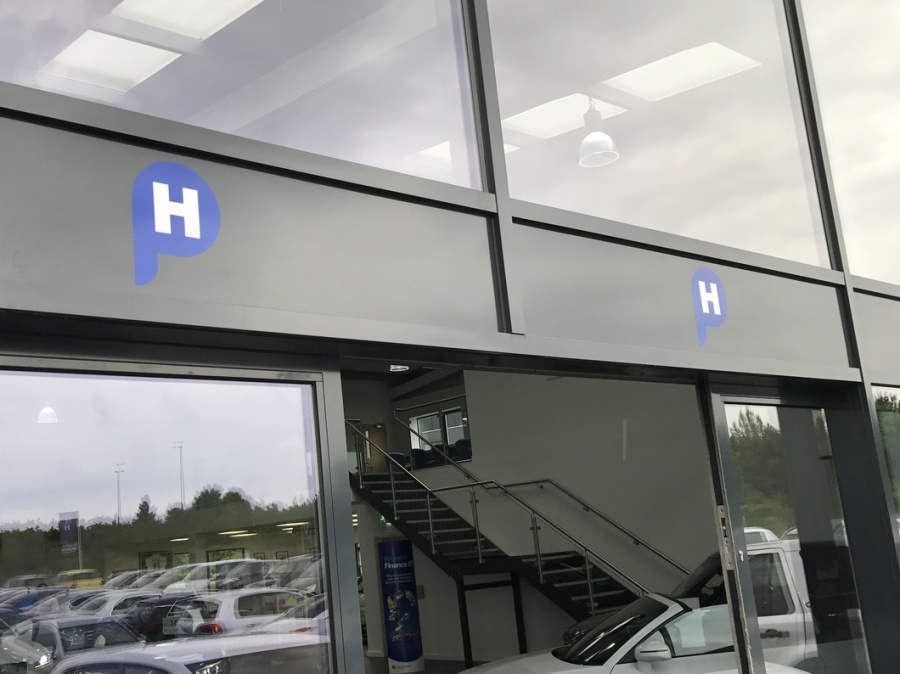

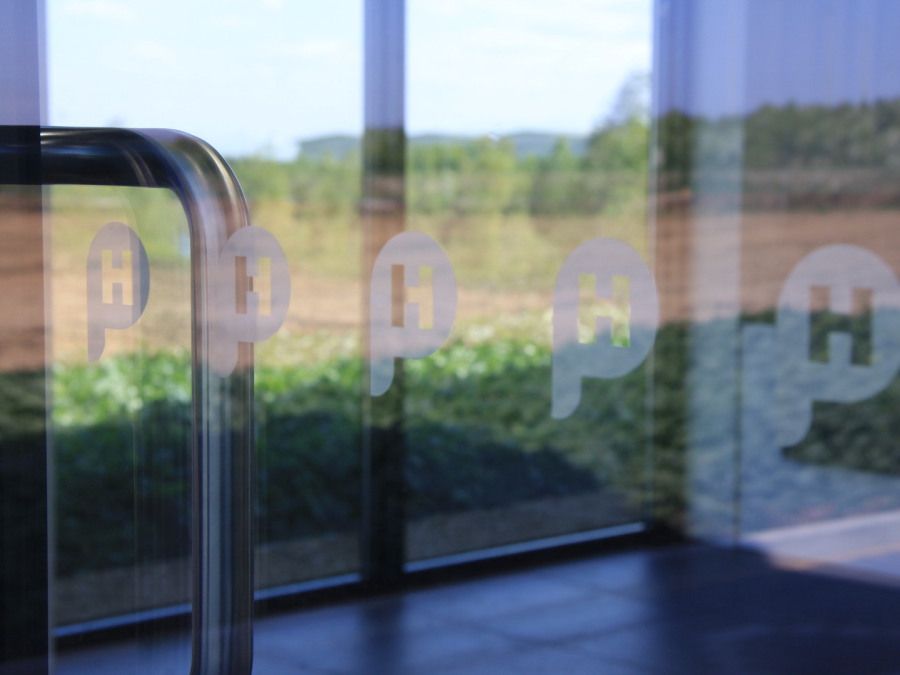

Applied cut vinyl etch logos to glazing panels and doors.

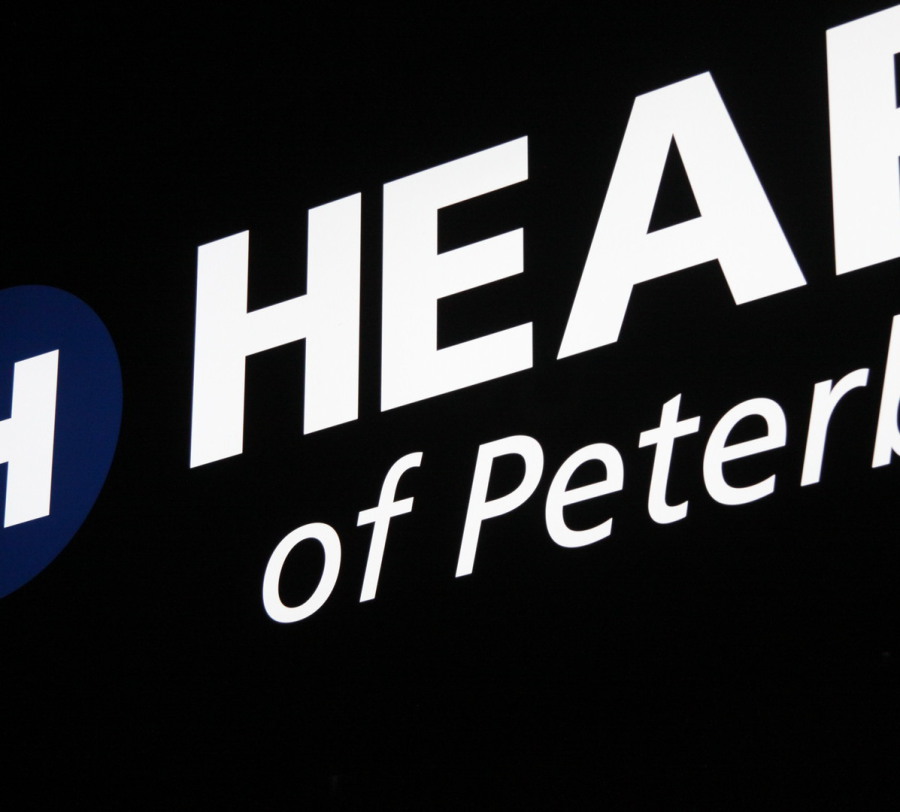

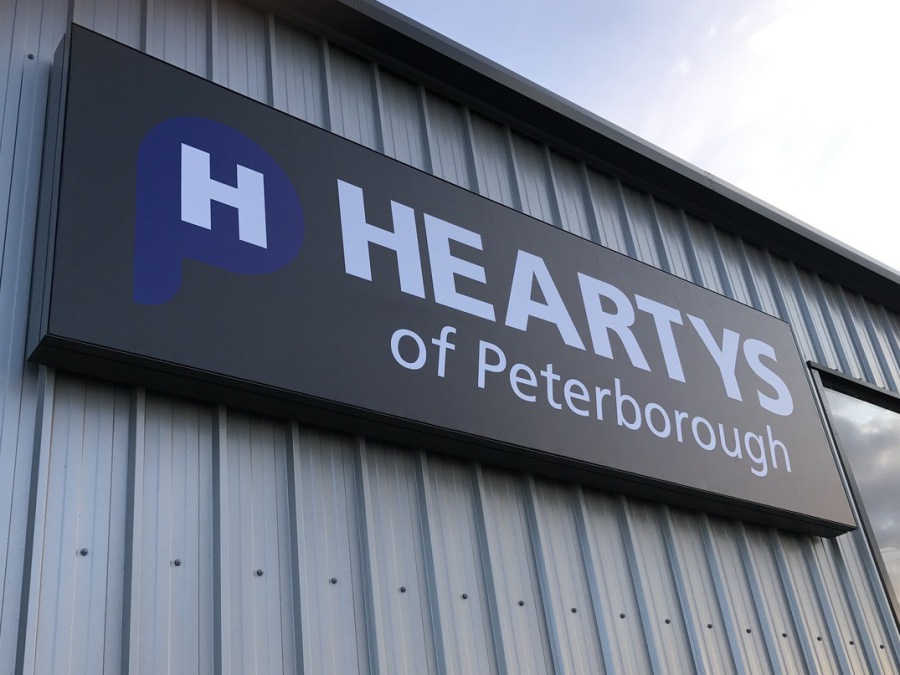

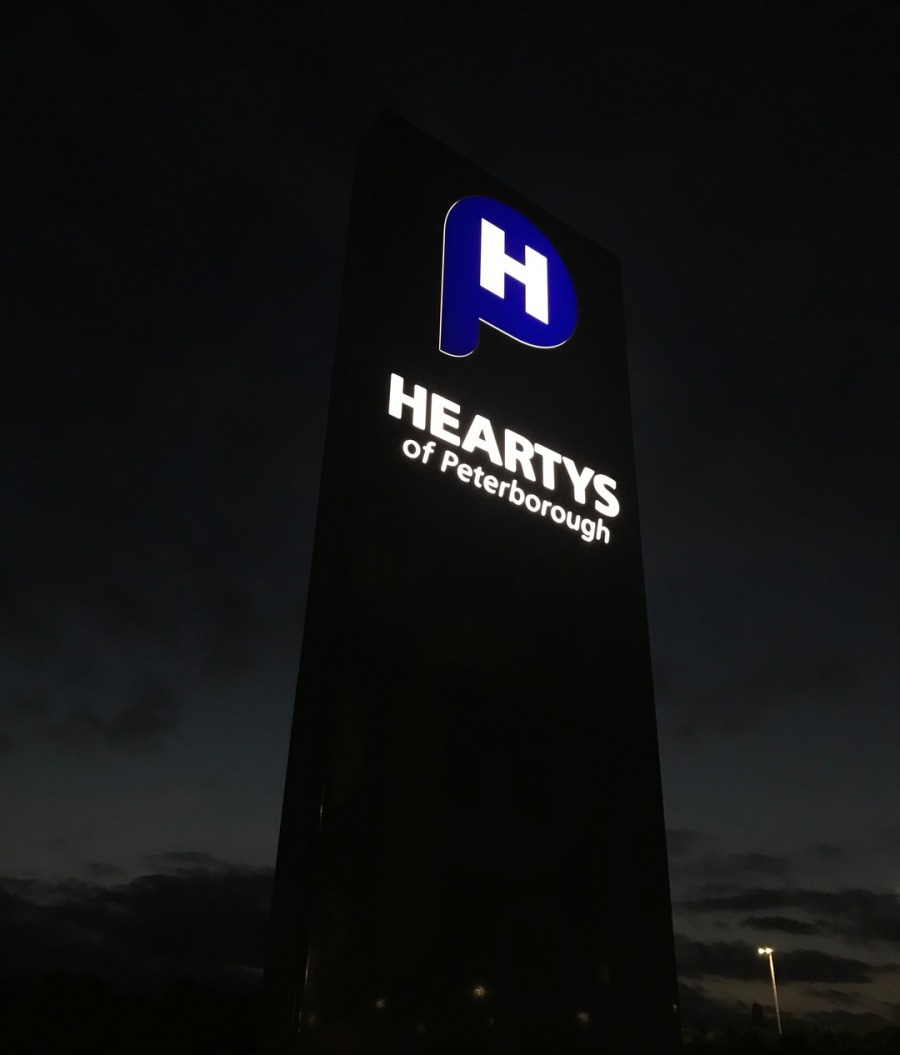

Illumination detail of flex faced boxes and totem sign with logo and type only to illuminate.

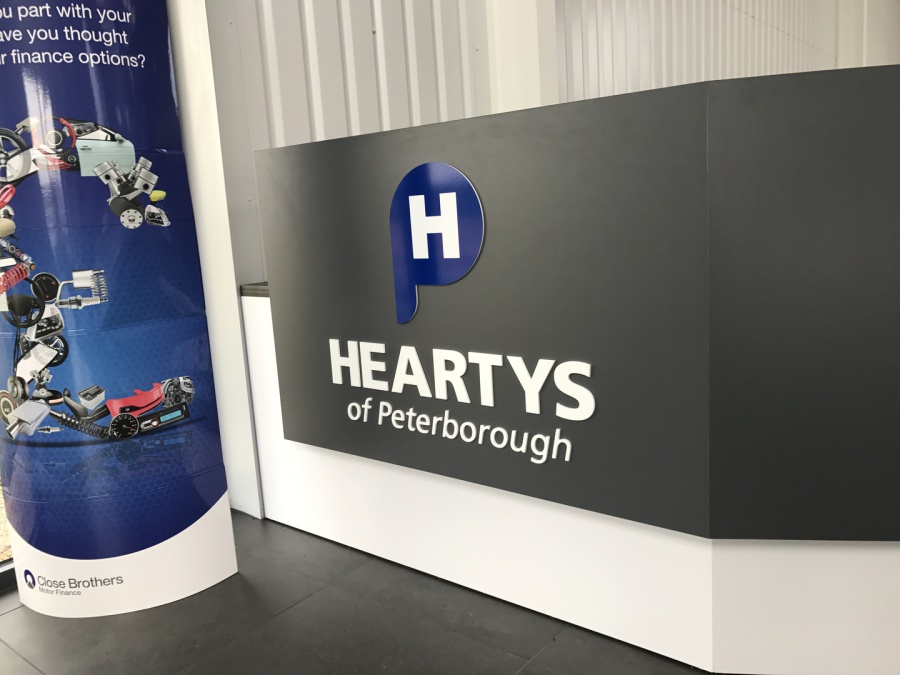

Flat cut acrylic reception desk logo with applied vinyl graphic detail.

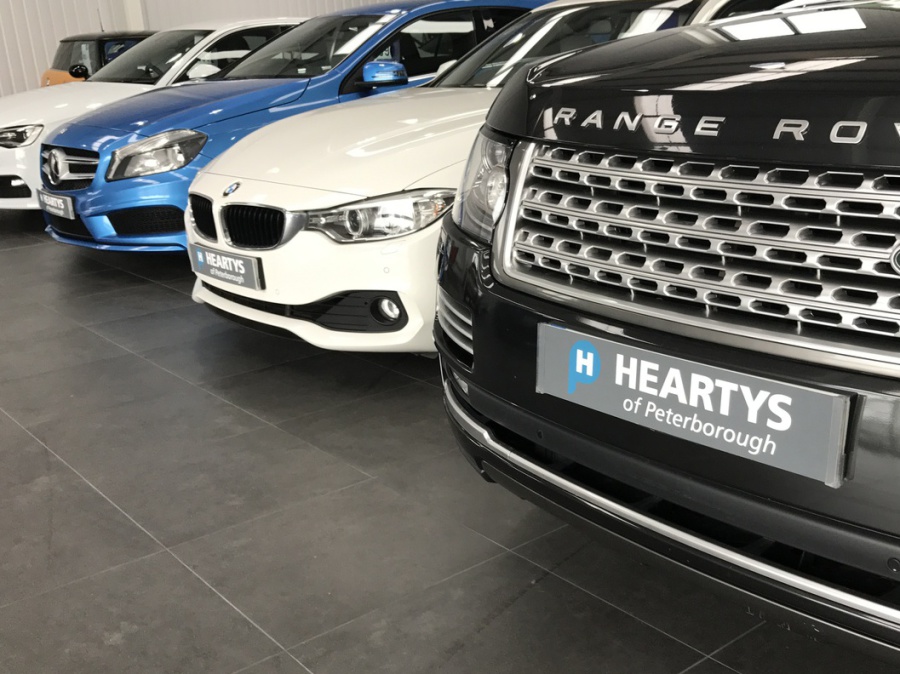

5mm foam PVC digitally printed number plate covers.





applied vinyl graphic logos to showroom entrance.

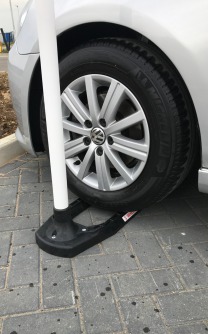

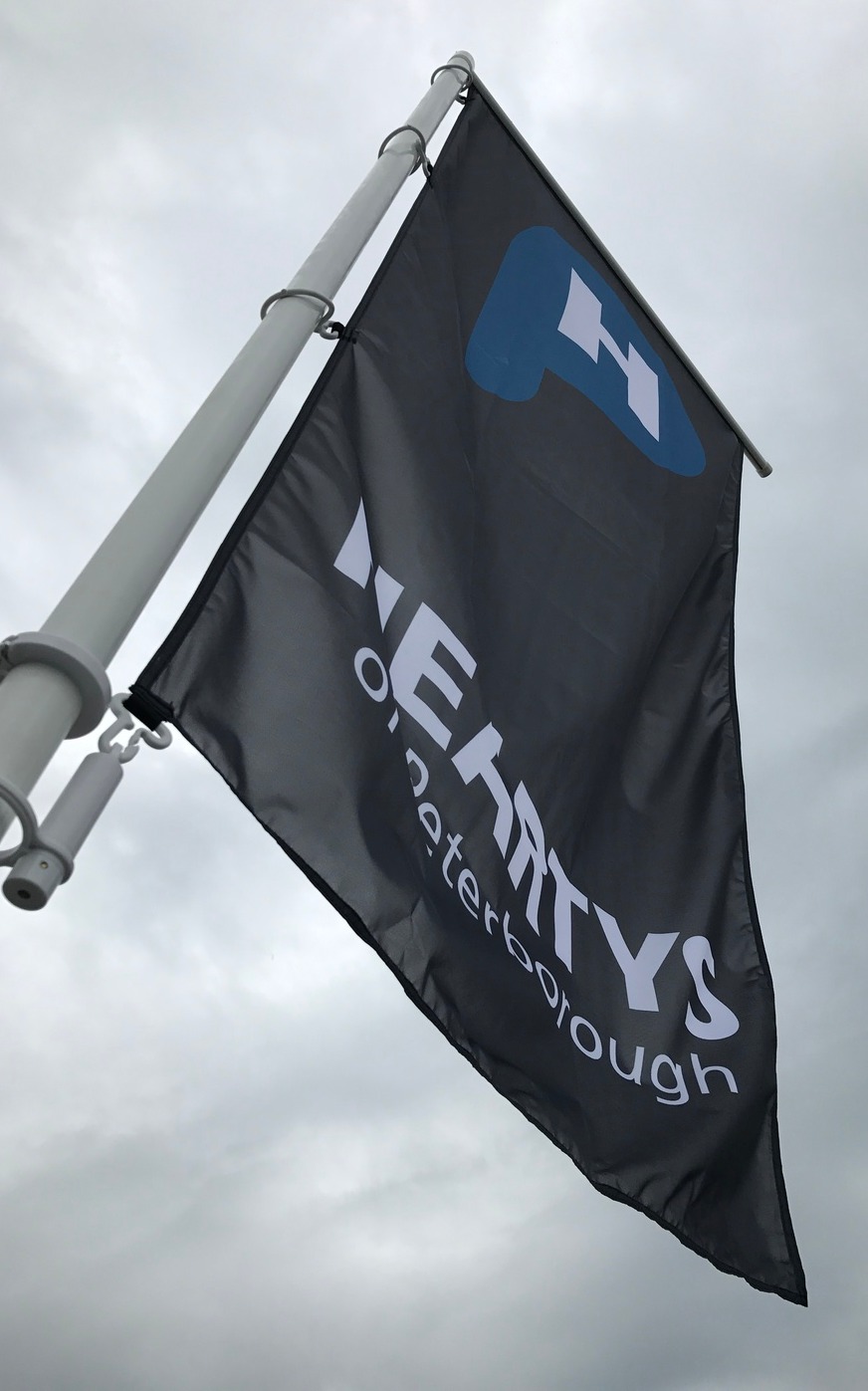

Aluminium portable flagpoles, powder coated white with full colour digitally printed flags. Not just suitable for car dealerships but also trade shows and events. Supplied in 2 parts, complete with a 1m wide rotating flag arm and car wheelbase or ground spike.
